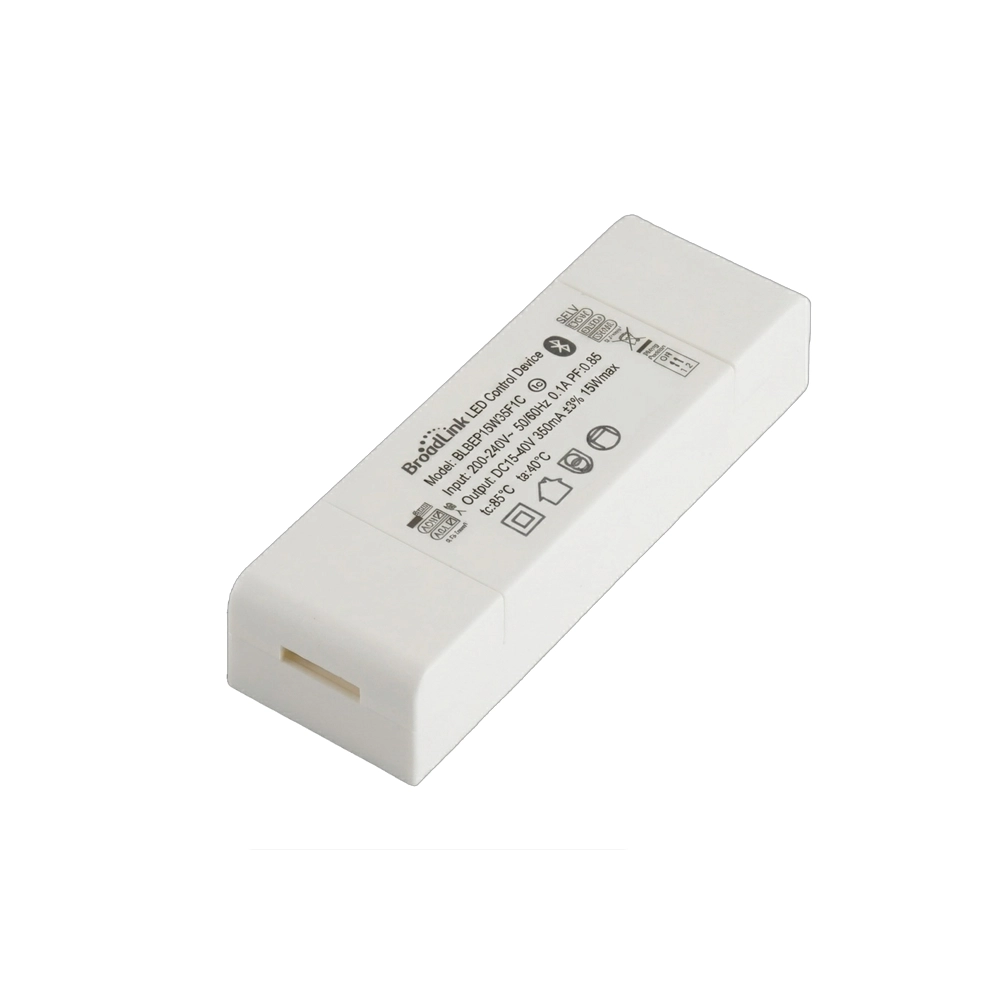

Hannochs Prestige Smart LED AC Driver CCT 15W

Categories: Products, Smart System

Input Parameters	Output Parameters	Control & Dimming	Built-in Protection	Safety & EMC Standards	Product Property	Product Dimension	Warranty & Lifespan
• Voltage: 200-240V AC • Frequency: 50/60Hz • Efficiency: ≥80% (@230VAC, Full Load) • Power Factor: ≤0.85 (@230VAC) • THD: <20% (@230VAC, Full Load) • Max. Current: 0.1A max @230VAC • Standby Power: <0.8W • No-Load Power: <0.8W	• Voltage: 20-40V DC • Current: 150/220/280/350mA (DIP Switch, Default: 350mA) • Ripple Current: 5% • Startup Delay: <0.5s (@230VAC) • Temp. Drift: ±5% • Linear Regulation: ±5% • PWM Frequency: 16K	• Method: FastCon BLE • Range: 1-100% (100 Levels total) • Dimming Depth: 0.5%	• Short Circuit Protection • Open Circuit Protection (48VDC MAX) • Over-temperature Protection *All with auto-recovery after fault clearance	• Surge: L-N: 2KV • Isolation: 3750VAC/1min/5mA • Safety: EN61347, GB19510 • EMC: EN55015, EN61000-3-2 • Immunity: EN61547 • Certification: CCC	• Material: PC • IP Rating: IP20 • Working Temp: -30°C ~ 45°C (20-90% RH non-condensing) • Max. Case Temp (tc): 85°C	115 * 36 * 23 mm (L * W * H)	• Lifespan: 30,000 Hours • Warranty: 3 Years (at Ta ≤ 40°C)
